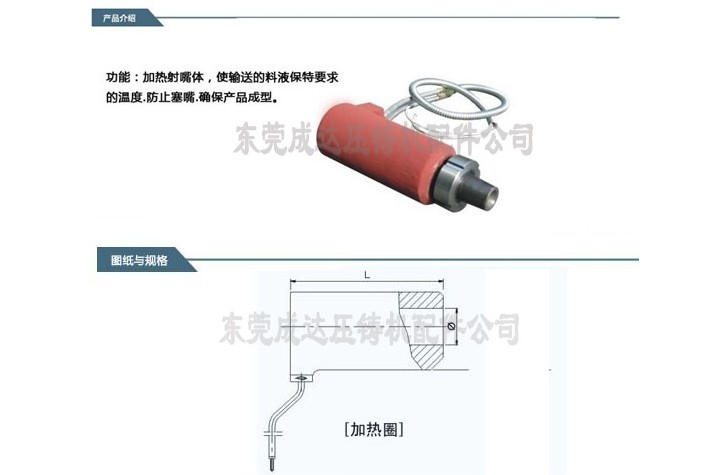

1. Put the heating trap on the nozzle body, and one end of the power connection line is in the direction of the gooseneck; the front end surface should be away from the cone end surface of the nozzle body (ie the mating end of the nozzle head) by 2-3mm;

2. Note: If there is no suitable heating ring for the extended nozzle body, move the heating ring as far forward as possible to the nozzle head to avoid plugging the nozzle;

3. Connect the power supply cable, and at the same time, insert the nozzle hot probe into the hot probe hole, and connect the sensing line;

4. It must be preheated before use: first adjust the thermostat to 100℃ and keep it warm for 30 minutes to allow time for the damp water vapor that may be adsorbed inside to be discharged, and then heat it in 2 to 3 stages to reach use Temperature to extend the service life of the heating ring.

1. The rated voltage is AC 220V;

2. The operating temperature is controlled within the range of 400-430℃, and the maximum allowable temperature is 450℃;

3. The inner hole and length of the heating ring must match the outer circle and length of the nozzle;

4. It is forbidden to spray the material liquid on the surface of the heating ring casting; at the same time, it is also forbidden to have the zinc alloy material liquid enter the heating ring hole along the inner hole.

Dongguan Chengda Machinery Parts Co., Ltd. (Wanda Die-casting Machine Parts Factory) is located in Dongguan City, the Pearl River Delta region with developed industries. For many years, our company has integrated R&D, production, sales, internal and external circular grinding, vacuum heat treatment, Vacuum nitriding and maintenance are integrated modern technology enterprises. Our company has a group of technical teams and sales teams with more than 10 years of experience in die casting machine parts processing, as well as high-precision production equipment, including CNC lathes, automatic lathes, milling machines, grinding machines (internal and external cylindrical grinding), and vertical grinding , Wire cutting, boring machine, gantry milling machine, vacuum heat treatment furnace, vacuum nitriding furnace, quenching furnace, etc. The production capacity is greatly improved, and the various production tasks proposed by customers can be completed efficiently and quickly. The product quality is more guaranteed and the delivery time is more punctual.

Processing, production and sales: Die-casting machine parts, Lijin, Yizumi, Fulai, Buhler, Hishinuma, Kazuka, Xingxing, Chenfeng, Weitai, Yousheng, Xinhong, Mingcheng, Zhengao, Noda, Ube , Toshiba, Toyo, Baoyang, etc. 15T-650T hot chamber zinc and magnesium alloy die-casting machine: material pot, nozzle body, nozzle head, piston ring, hammer head, heating sleeve, heating cake, temperature control rod and other accessories; 125T-4500T cold chamber aluminum, magnesium alloy : Barrel, plunger head, injection rod, connector, plunger oil, crucible, release agent, spray gun, pellet oil, melting furnace, pellet machine, manipulator, mold accessories: firing pin, firing pin sleeve, etc.; die-casting Machine maintenance, material pot replacement, etc.; the company has a complete and scientific quality management system. Integrity, strength and product quality have been recognized by the industry. Friends from all walks of life are welcome to visit, guide and negotiate business.

By virtue of its professional level and mature technology in the field of die-casting machine accessories, as well as its diversified information advantages in the Pearl River Delta, Chengda has absorbed advanced foreign processing, heat treatment, and nitriding technologies, and has undergone many years of technical practice, research and development and innovation. , The service life of parts is equal to the service life of imported parts. The die-casting machine parts produced by our company are sold all over the country and abroad.
